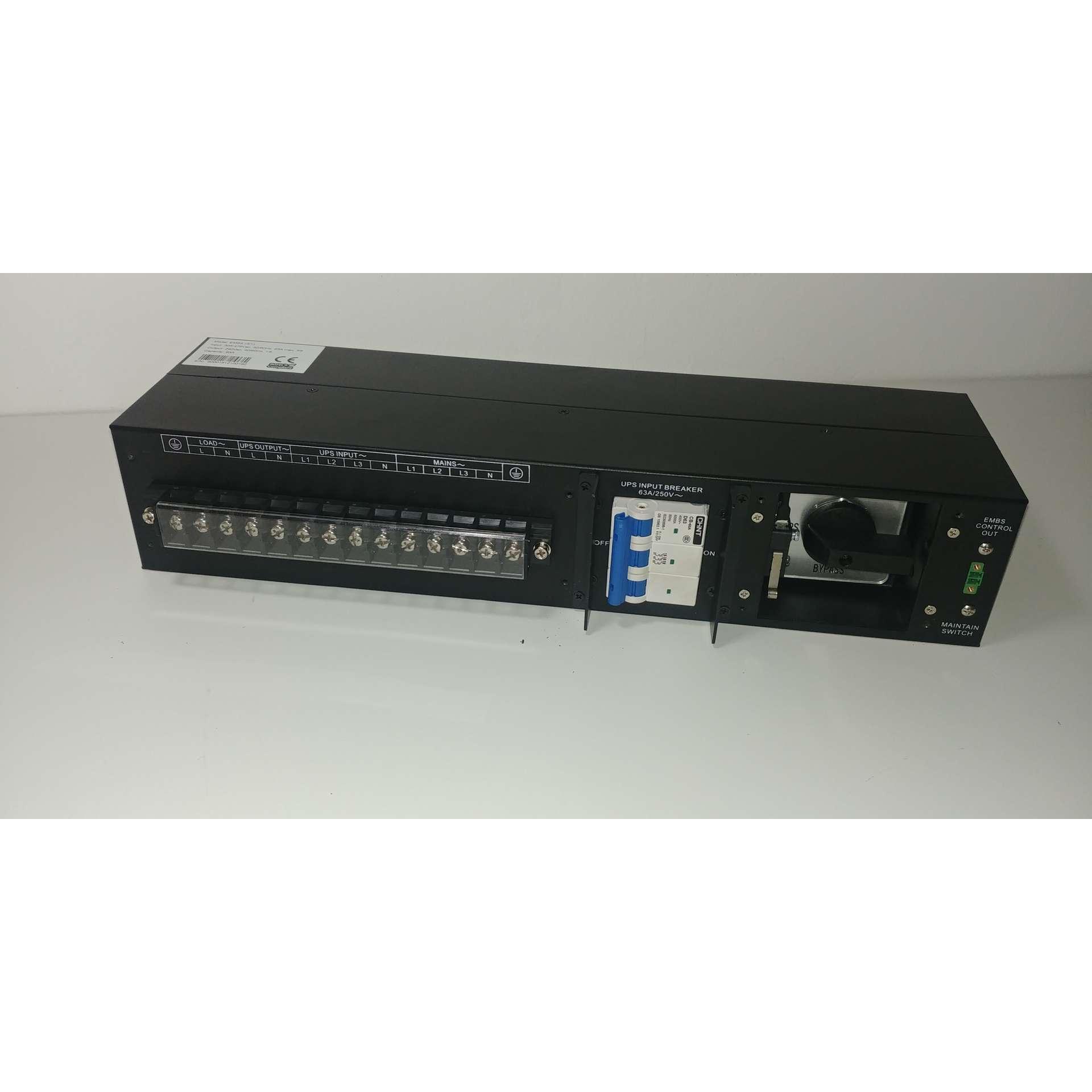

PowerWalker MBS/PDU 19in 3/1P 10K for all 10K 3/1 Rack/Tower UPS Art no. 10133005

An external Maintenance Bypass Switch. It provides continuous power without shutting down the connected loads during UPS scheduled maintenance or battery replacement. Built in “Make Before Break” technology, it is easy in operation with a rotary switch. It features terminal block for connecting input and output. Using a relay contact it sends signal to the UPS to switch it to the internal bypass to avoid short of the input and output of the UPS.

SKU: PUA0036

Manufacturer part number: 10133005

Availability: Out of stock

€259.97 incl VAT

Qty:

i h

General Features
Phases (IN-OUT)	3-1
Form Factor	Rack
Rack Units [U]	2U
Input
Frequency Range	50Hz or 60Hz (self-adaptive)
Input & Output Connectors
Input Connector	Terminal
Terminal Output	Yes
Technical Details
Bypass	Manual – Bypass
Additional Features	Input Breaker
Management and Environment
IP	IP 20
Logistics
Package Height [mm]	168
Package Width [mm]	498
Package Depth [mm]	115
Package Weight [kg]	4.5
Product Height [mm]	88
Product Width [mm]	440
Product Depth [mm]	196
Product Weight [kg]	4.0
EAN	4260074981513
Product Dimensions (DxWxH) [mm]	196 x 440 x 88 mm
Package Dimensions (DxWxH) [mm]	115 x 498 x 168 mm
