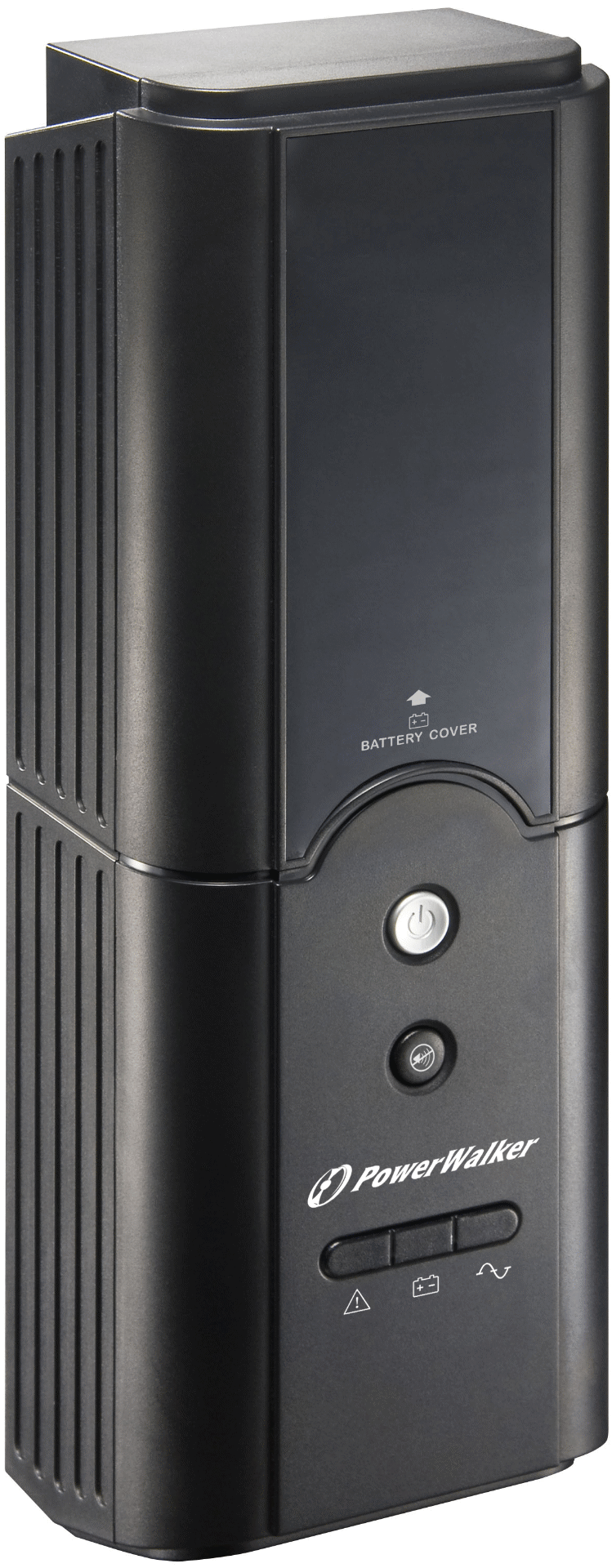

PowerWalker DC UPS 12V Art. 10120430

General features
Type DC
Power capacity 30W
Input
Input Voltage Range 80-260 VAC
Frequency Range 45Hz - 65Hz
Output
Nominal Output Voltage 12 VDC
Voltage Regulation (Bat. Mod.) Supplied directly from battery, varies from 13.6VDC (line mode) to 9.6VDC (battery mode before cut off)
Technical details
Overload Capacity N/A
Charger 2,5A @ 13.7V ± 0.25V
Protection Discharge Prevention 10.5V ± 0.5V
Additional Information Outlets: 7-Pin Connector (2 Pins for DC Output)
Dry Contacts: (5 Pins for Dry Out signal)
Hot Swappable Battery
Backup Time with 1A discharge - around 340 mins
LED Indicators AC Mode: Green LED Lighting
Backup Mode: Yellow LED Lighting
Low Battery: Yellow LED Flashing
Battery Replace: Red LED Flashing
Battery Missing: Red LED Lighting
Fault: Red LED Lighting
Battery Self-Test: Green LED flashing
Efficiency
LINE mode full Load 80.0%
Batteries and autonomy time
Batteries 1x 12V/7Ah
DC Voltage 1 x 12V
Recharge Time 4h to 90%
Full Load Backup Time 114min
Half Load Backup Time 279min
Connections and communication
Terminal Output 1
Input C14
Environment
Temperature 0°C – 40°C
Humidity 0% - 90% RH (non-condensing)
Logistics
Package Content UPS, Manual, Input Power Cord, 7-Pin Connector
Manual Languages EN
EAN 4260074976595
Width 120 mm
Height 358 mm
Depth 86.5 mm
Weight 3.5 kg
Giftbox - Weight 4 kg
Carton - Width 545 mm
Carton - Height 455 mm
Carton - Depth 320 mm
Carton - Weight 26 kg
