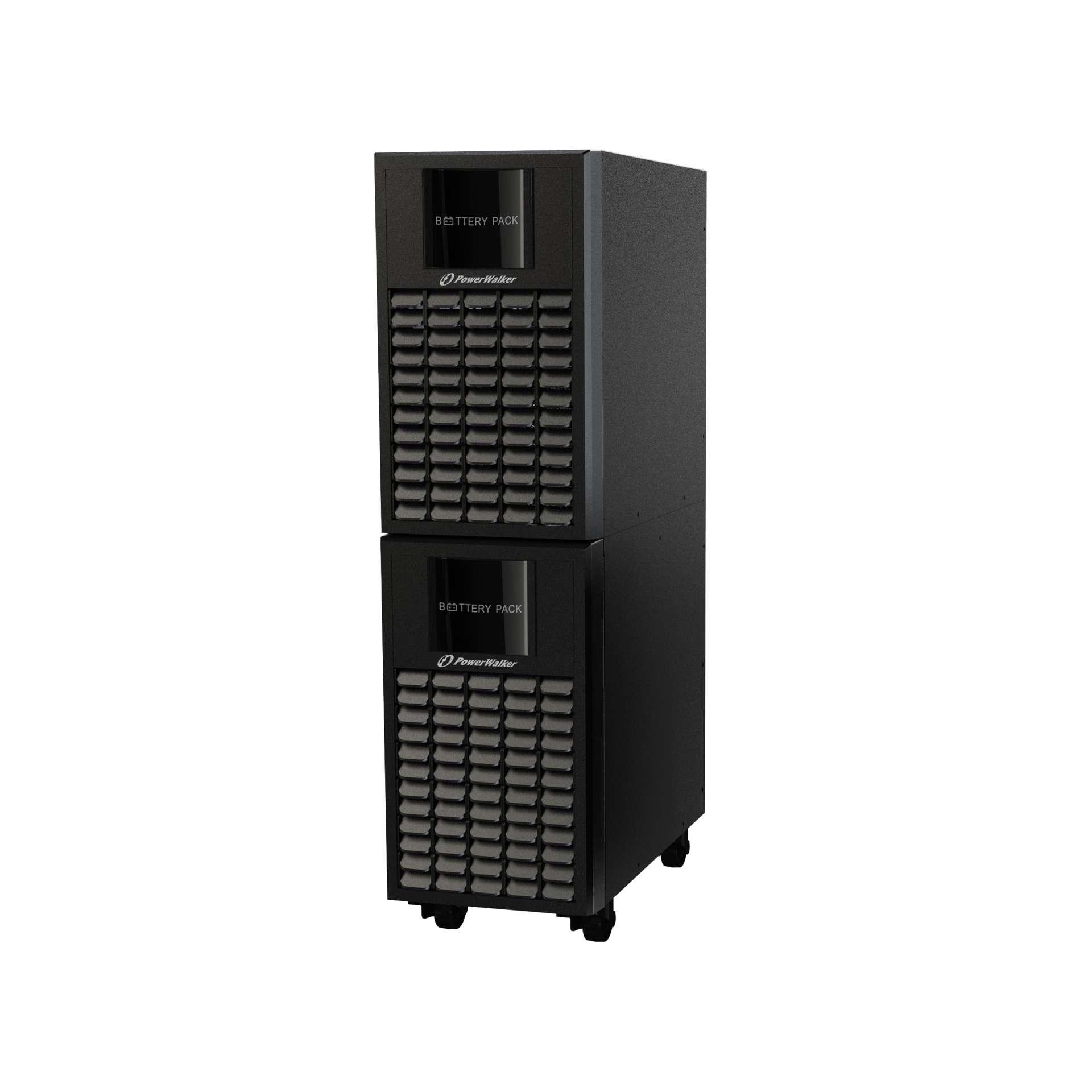

Powerwalker BP A240T-40x9Ah for VFI 6000/10000 CG PF1 Art. No. 10120558

BP uses empty housing number 10134025 Battery Pack for VFI 10000 CG (40x9Ah, 240VDC). Includes 2 strings of 20 batteries, each 12V/9Ah capacity. Battery pack operates on 240VDC nominal voltage. Cable 91015004 Anen SA50B2-H to Anen SA50B2-H is included

SKU: PBT0077

Manufacturer part number: 10120558

Availability: Out of stock

€1645.84 incl VAT

Qty:

i h

General Features
Form Factor	Tower
Batteries and Autonomy
Batteries	2.0x20x 12.0V/9.0Ah
DC Voltage	20x 12.0V
Management and Environment
IP	IP 20
Logistics
Package Height [mm]	320
Package Width [mm]	580
Package Depth [mm]	910
Package Weight [kg]	130.5
Product Height [mm]	688
Product Width [mm]	190
Product Depth [mm]	442
Product Weight [kg]	119.8
EAN	4260074975437
Product Dimensions (DxWxH) [mm]	442 x 190 x 688 mm
Package Dimensions (DxWxH) [mm]	910 x 580 x 320 mm
