DIMENSIONS
MAIN UNIT:
Height x Width x Depth:
154 mm X 150 mm X 104 mm
Height with extender 345 mm
Weight: 568 g
SYSTEM REQUIREMENTS
Windows® 7, 8.1, or 10
macOS X 10.7 or higher
TECHNICAL SPECIFICATIONS
CAMERA
Full HD 1080p video calling (up to 1920 x 1080 pixels); 720p HD video calling (up to 1280 x 720 pixels) with supported clients
Field of View:
Diagonal: 78°
Horizontal: 70.42°
Vertical: 43.3°
1.2x HD zoom
228 mm extender stem for elevation / eye-level camera angle
Rightlight™ 2 Technology for clarity in various lighting environments, even low light
Camera LED for active streaming indication
SPEAKERPHONE
Integrated full duplex speakerphone with echo and noise cancellation
Controls for call answer/end, volume, mute, and camera movement
Microphone (Tx)
Omnidirectional microphone with 2.4 m diameter range
Frequency response: 200Hz – 8KHz
Speakers (Rx)
Frequency response: 220Hz – 20KHz
Max output: 80 dB SPL at 0.3 m
REMOTE CONTROL
IR 3 m range
CR2032 battery (included)
CABLES / POWER
AC Power adapter
Power cable (2.4 m)
USB cable (2.4 m)
MOUNT
Designed for tabletop use
COMPATIBILITY AND CERTIFICATIONS
Plug-and-play USB connectivity
Certified for Skype for Business and ready for Teams
Zoom Certified
Fuze Certified
Compatible with Google Meet
Cisco Jabber® and WebEX Compatible
Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras
PACKAGE CONTENTS

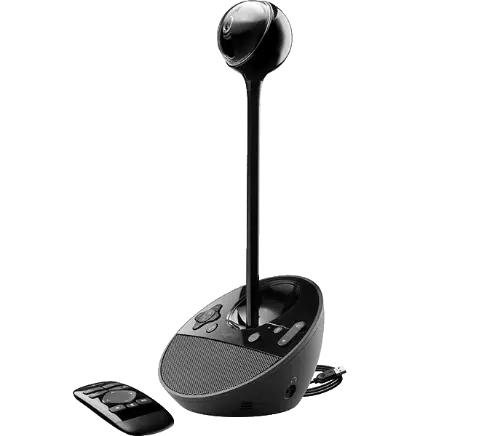

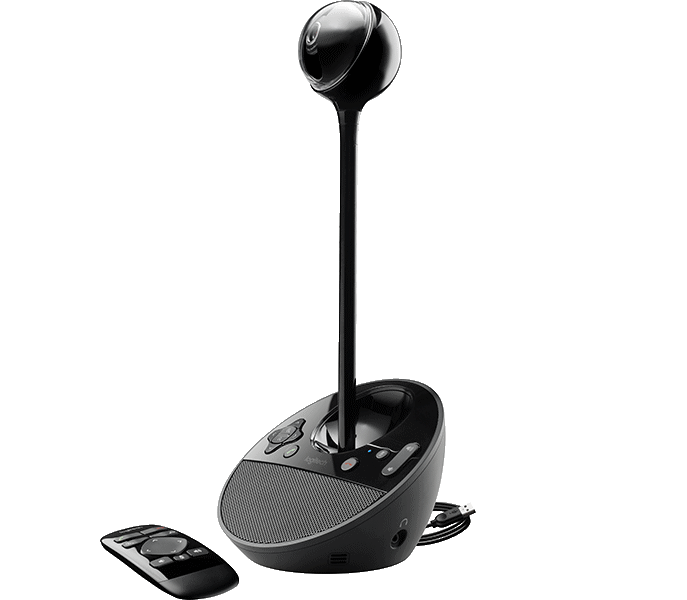

BCC950 ConferenceCam base and attached USB cable
Camera extender stem
Webcam head
Power cable
Quick start guide
Remote control
WARRANTY INFORMATION
2-Year Limited Hardware Warranty
PART NUMBER
PN: 960-000867
