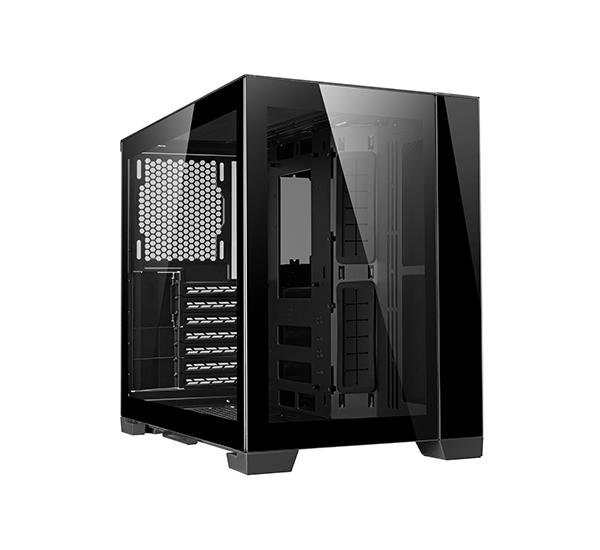

Lian Li PC-O11 Dynamic Mini Tempered Glass Case Black

Manufacturer: Lian Li

Think Big. Build Small. O11D MINI adding to the O11 Dynamic series, the classic and mordern looking. A case that would accommodate the maximum number of water-cooling configurations without being oversized. With a modular back panel design, the user has the option to choose from 3 slots/ 5 slots/ 7 slots I/O shield to optimize the case to the configuration of user’s choice. Supports mini-ITX, micro-ATX, ATX, and E-ATX motherboard sizes. and up to 9 fans to cool the chassis.

SKU: CCS0148

Manufacturer part number: G99.O11DMI-X.00

Availability: 4 in stock

€150.00 incl VAT

Qty:

i h

MODEL NAME	O11 DYNAMIC MINI
MODEL NO.	O11DMINI-X BLACK	O11DMINI-W WHITE	O11DMINI-S SNOW EDITION
COLOR	Black	White	Snow white
DIMENSIONS	(D)420mm X (W)269.5mm X (H)380mm
MOTHERBOARD	E-ATX (Max 280 mm wide)/ATX/ Micro-ATX/ Mini-ITX
PSU	SFX/ SFX-L
MATERIAL	Steel 4 mm Tempered Glass 2mm Aluminum (top and left panel)
FAN SUPPORT	Top: 3x 120mm or 2x 140mm Side: 2x 120mm or 2x 140mm Bottom: 3x 120mm or 2x 140mm Rear: 1x 120mm
RADIATOR SUPPORT	Top: 360mm or 280mm or 240mm or can’t mount Side: 240mm or 280mm radiator Bottom: 360 or 280mm or 240mm radiator
GPU LENGTH CLEARANCE	395mm
CPU COOLER HEIGHT CLEARANCE	170mm
VGA Length	370mm
DRIVES	Right side 2 x 2.5″ SSD + back plate 2 x 3.5″ HDD (or SSD)
EXPANSION SLOTS	3 or 5 or 7 slots (depends on back panel)
IO PORTS	2 x USB 3.0, 1 x USB 3.1 TYPE-C, 1 x HD Audio, Power Button
DUST FILTERS	1 x Top, 1 x Bottom, 2 x Side
