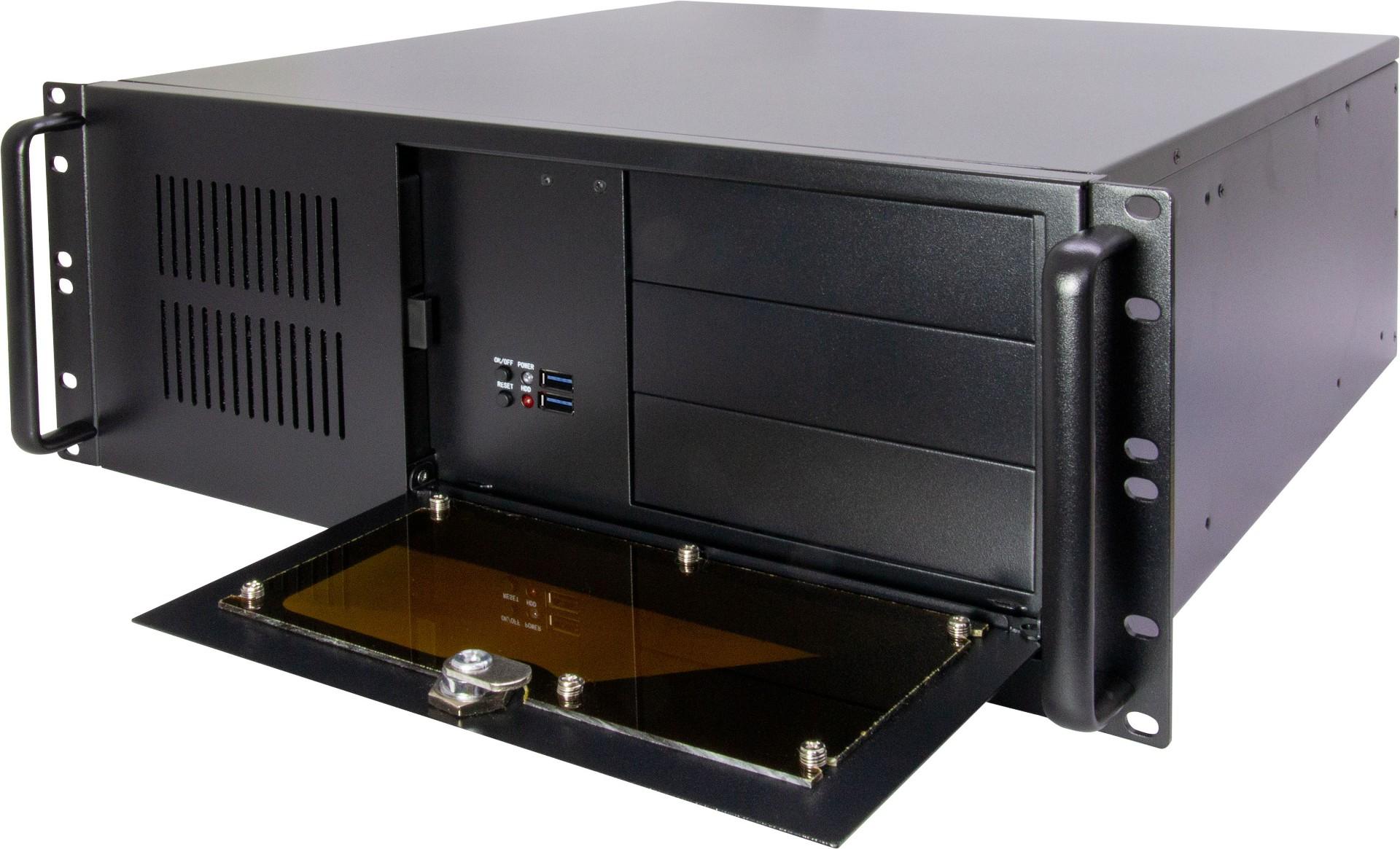

    Inter-Tech 19" 4088-S 19" Industrial Rack-Mount Server Chassis

    Manufacturer: Inter-Tech
    he 4U 4088-S - Classic 19" Rack with a lot of space for different drives. You can remove the HDD cages with a few steps for easy mounting of internal devices. You can mount 4 x 2.5" Hard drives on a crossbeam inside the case. The crossbeam is also equipped with a slot card holder to ensure a safe usage. The lockable doors in front of the slots prevent, unauthorized access.
    SKU: CCS0136
    Manufacturer part number: 88887178
    Availability: 4 in stock
    €109.00 incl VAT
    i h
    MOTHERBOARD
    Form factorMini ITX, mATX, μATX, ATX
    max. Motherboard size305mm x 270mm (12" x 10.6")
    INSTALLATION DIMENSIONS
    Height CPU cooler (max.)130mm³
    Length graphics card (max.)275mm⁴
    ³ without middle bridge
    ⁴ the amount of the internal 3.5" drives can vary

    DRIVE BAYS

    5.25" external3x / 2x¹
    3.5" external/ 1x¹
    3.5" internal8x
    2.5" internal7x²
    ¹ by using the mounting frame 5.25" to 3.5" external, one 5.25” is dropped
    ² max height 6x 9.5mm and 1x 15mm

    FRONT CONNECTORS

    USB 3.02x
    USB 2.0-
    POWER SUPPLY
    PS2/mini redundant PSU
    ATX PSU
    FAN MOUNTING OPTION
    Front1x 120mm (serial, Molex connector)
    Rear2x 80mm (optional)
    CONTROLS & LED
    ControlsPower-Button
    Reset-Button
    LEDPower
    HDD Activity
    OTHER DATA
    Dimensions (h/w/d)178 x 485 x 483mm
    Material1.0-1.2mm Steel
    Warranty24 months
    SCOPE OF DELIVERY & FEATURES
    Scope of delivery

    Case

    Retail packaging

    Keys

    Screw Set

    Mounting frame 5.25" to 3.5" external

    Features

    Removable HDD cages

    7x screwed and perforated brackets (backside)

    Slot Card holder each 1x for short, mid and high Slot Cards

    Lockable front door

    USB 3.0 internal as block connector
