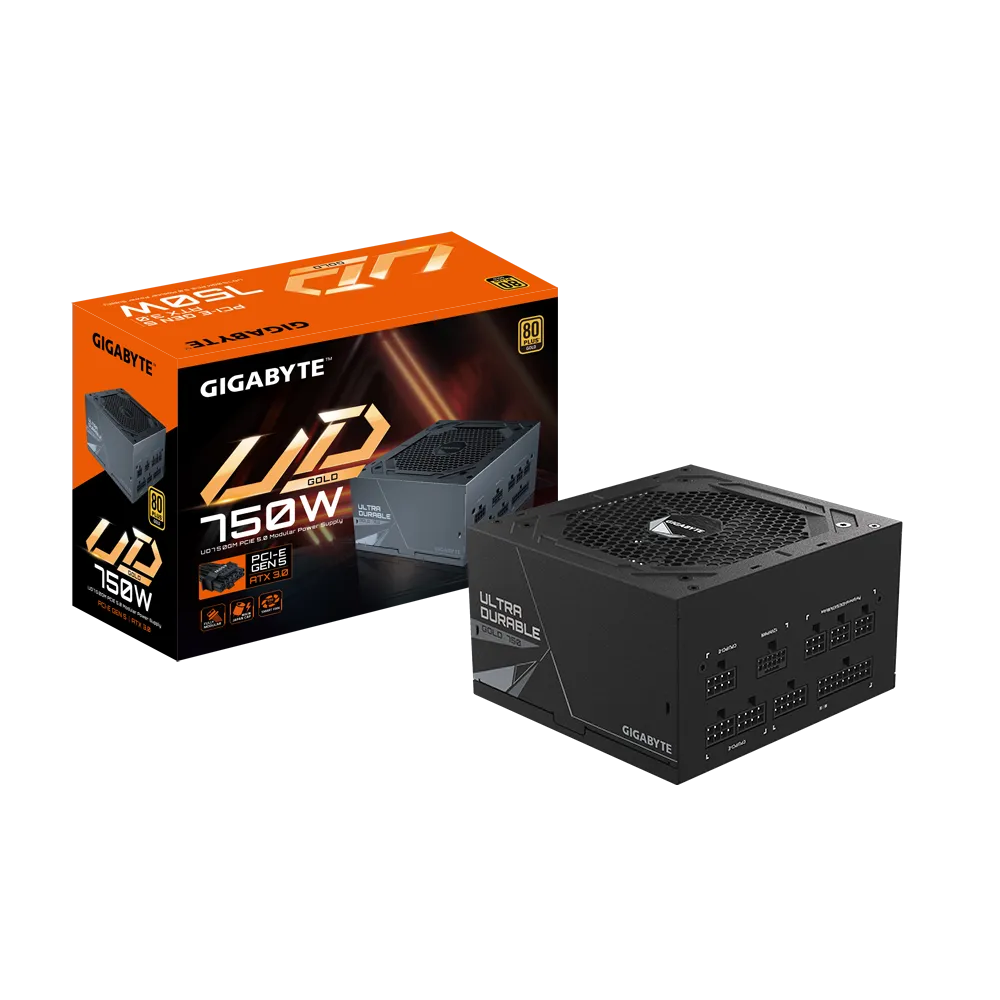

    Gigabyte PSU 750W 80 Plus Gold UD750GM PG5 Fully Modular Power Supply

    Manufacturer: Gigabyte
    Ultra Durable Main Japanese capacitors Enhanced thermal solution 120mm smart hydraulic bearing (HYB) fan OVP/OPP/SCP/UVP/OCP/OTP protection Support PCIe Gen 5.0 graphics cards Support Intel ATX 3.0 standard 80 PLUS Gold certified Fully modular design Compact design
    SKU: CPO0127
    Manufacturer part number: GP-UD750GM
    Availability: Out of stock
    €93.70 incl VAT
    i h
    • Model
      GP-UD750GM PG5
    • Type
      Intel Form Factor ATX 12V v3.0
    • PFC
      Active PFC (>0.9 typical)
    • Input Voltage
      100-240 Vac (full range)
    • Input Current
      12-6A
    • Input Frequency
      60-50 Hz
    • Output Capacity
      750W
    • Dimension
      150 x 140 x 86mm
    • Fan Type
      120mm Hydraulic Bearing(HYB)fan
    • 80 PLUS
      Gold
    • Efficiency
      90% at typical load
    • MTBF
      >100,000 hours
    • Protection
      OVP/OPP/SCP/UVP/OCP/OTP
    • Power Good Signal
      100-150ms
    • Hold Up Time
      >16ms
    • Cable Type
      Flat, All black
    • Connectors
      ATX/MB 20+4 Pin x 1 : 610mm*1
      CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
      PCIe 16 Pin x 1: 700mm*1
      PCIe 6+2 Pin x 4 : 600mm+150mm*2
      SATA x 8 :
      600mm+150mm+150mm+150mm*2
      4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
