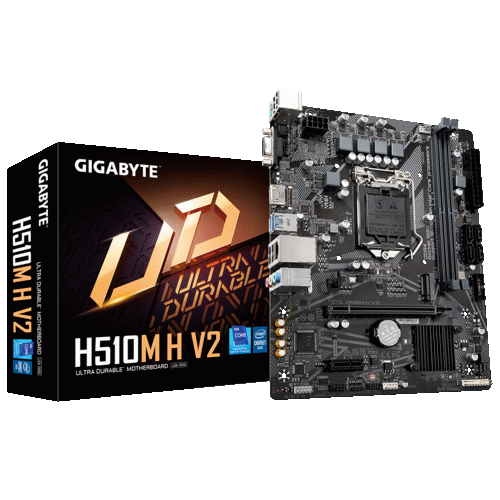

Gigabyte H510M H V2 Intel 1200 Micro ATX Motherboard H510M H V2 G10

Manufacturer: Gigabyte

Supports 11th/10th Gen Intel® Core™ Processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs 8-Channel HD Audio with High Quality Audio Capacitors NVMe PCIe Gen3 x4 2280 M.2 Connector GbE LAN with Bandwidth Management Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP GIGABYTE APP Center, Simple and Easy Use Anti-Sulfur Resistors Design

SKU: CMB0201

Manufacturer part number: H510M H V2 G10

Availability: 29 in stock

€61.10 incl VAT

Qty:

i h

LGA1200 package:
1. 11th Generation Intel^® Core™ i9 processors / Intel^® Core™ i7 processors / Intel^® Core™ i5 processors
2. 10th Generation Intel^® Core™ i9 processors / Intel^® Core™ i7 processors / Intel^® Core™ i5 processors / Intel^® Core™ i3 processors/ Intel^® Pentium^® processors / Intel^® Celeron^® processors
3. L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset
1. Intel^® H470 Express Chipset
Memory
1. 11th Generation Intel^® Core™ i9/i7/i5 processors:
  Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2. 10th Generation Intel^® Core™ i9/i7 processors:
  Support for DDR4 2933/2666/2400/2133 MHz memory modules
3. 10th Generation Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
  Support for DDR4 2666/2400/2133 MHz memory modules
4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
5. Dual channel memory architecture
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.3.
2. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  * The D-Sub port is only available with the 10th Generation processors.
(Graphics specifications may vary depending on CPU support.)
Audio
1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
1. Realtek^® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
CPU:
1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
2. 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
* Supported with an additional PCIe to M.2 NVMe SSD adapter card
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
USB
Chipset:
1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x RGB LED strip header
6. 1 x M.2 Socket 3 connector
7. 4 x SATA 6Gb/s connectors
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x USB 3.2 Gen 1 header
11. 1 x USB 2.0/1.1 header
12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
13. 1 x serial port header
14. 1 x Clear CMOS jumper
Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x HDMI port
4. 2 x USB 3.2 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Fan fail warning
5. Fan speed contro
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  Ambient LED
  EasyTune
  Smart Backup
  System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. LAN bandwidth management software
Operating System
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
Form Factor
1. Micro ATX Form Factor; 22.6cm x 18.5cm
