Gigabyte Brix-Mini-PC Barebone GB-BXIP-N150 Intel Celeron N1500

Manufacturer: Gigabyte
The Gigabyte BRIX GB-BXIP-N150 is a compact Mini PC barebone powered by the Intel Celeron N1500 processor. Designed for space-constrained environments, it delivers efficient everyday performance and robust connectivity in a sleek small-form-factor design — ideal for home, office, digital signage, and media applications.
SKU: SBB0016
Manufacturer part number: BRIX GB-BXIP-N150
Availability: 7 in stock
€179.50 incl VAT
i h
    • Dimension
    • 113 mm x 116.52 mm x 56.22 mm
    • Motherboard Size
    • 108 mm x 103 mm
    • CPU
    • Intel® Processor N150
      4C, up to 3.6 GHz, 6W
    • Memory
    • 1 x SO-DIMM DDR5 slot, support up to 4800MHz
      Max. 16GB
    • LAN
    • GbE LAN (Realtek® RTL8111H)
    • Wifi Card
    • AW-CB515NF
      Wi-Fi 5 ; 802.11 a/b/g/n/ac WLAN 1T1R with Bluetooth 5.0
    • Graphics
    • Intel® Graphics 24EUs
      1 x HDMI v2.0, 4096x2160@60Hz
      1 x Rear IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz
      1 x Front IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz
    • Audio
    • Realtek® ALC897
    • Storage
    • 1 x 2.5" slot for SATA HDD/SSD
    • Expansion Slots
    • 1 x M.2 M Key 2280 slot (PCIe Gen 3x2)
      1 x M.2 E key 2230 slot (For Wi-Fi + Bluetooth card)
    • Front I/O
    • 1 x Power button
      1 x USB 3.2 Gen2 Type-A
      1 x USB 3.2 Gen2 with Type-C (ALT mode, DP+USB)
      1 x Headphone
      1 x Microphone

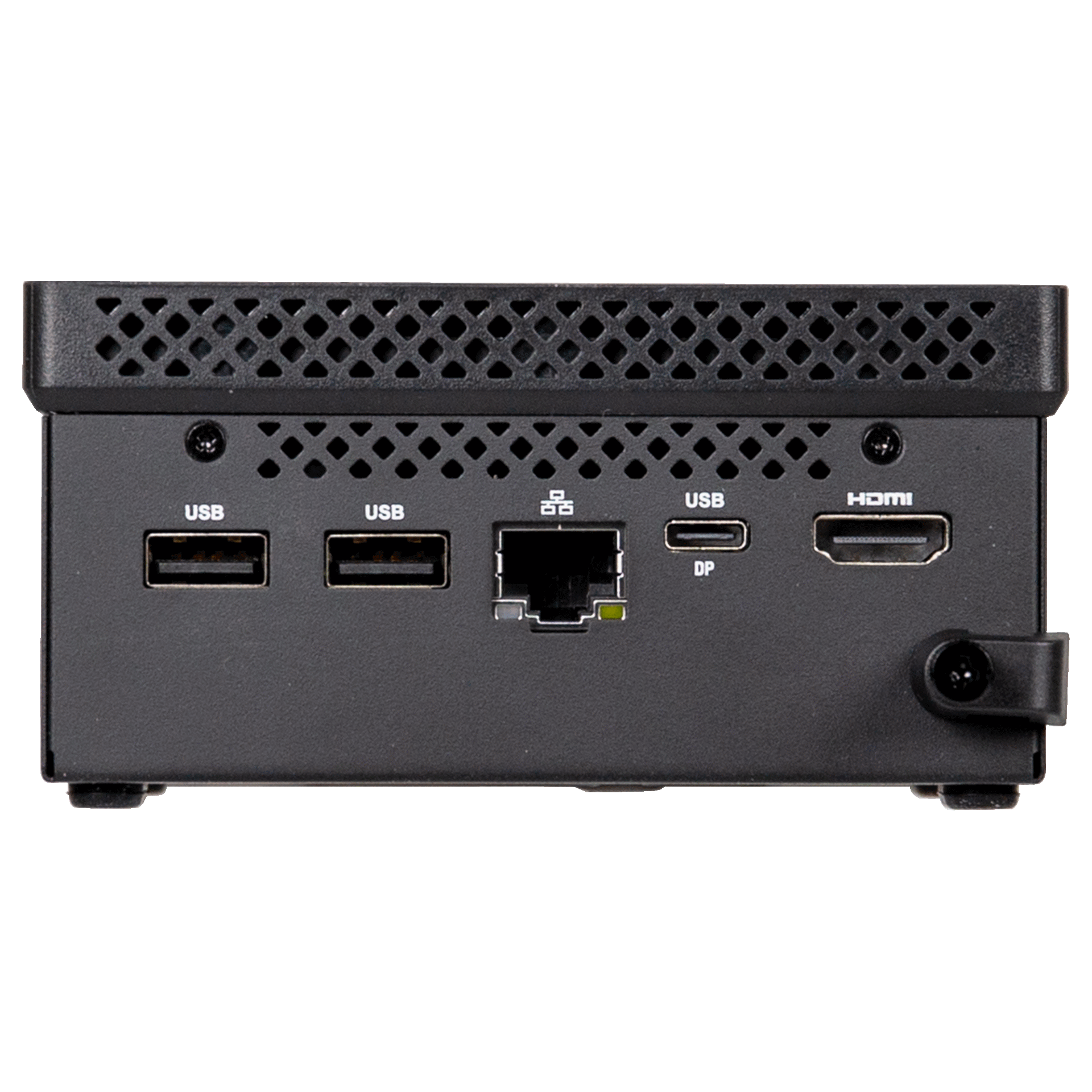

    • Rear I/O
    • 1 x HDMI
      1 x RJ45
      2 x USB 3.2 Gen2 Type-A
      1 x USB 3.2 Gen2 Type-C (ALT mode, DP +USB)
      1 x Wire Clamp Screw Hole
    • Left I/O
    • 1 x DC-In
    • Right I/O
    • 1 x Kensington lock slot
    • Power Supply
    • Input: AC 100-240V
      Output: DC 19V / 3.42A, 65W
    • VESA
    • VESA support
      Supports 75 x 75 and 100 x 100 mm
    • Support OS
    • Windows 11 64bits
      Fedora 40
      Ubuntu 24.04.2 LTS
      Ubuntu 24.04.3 LTS
      Ubuntu 24.10
      Ubuntu 25.04
