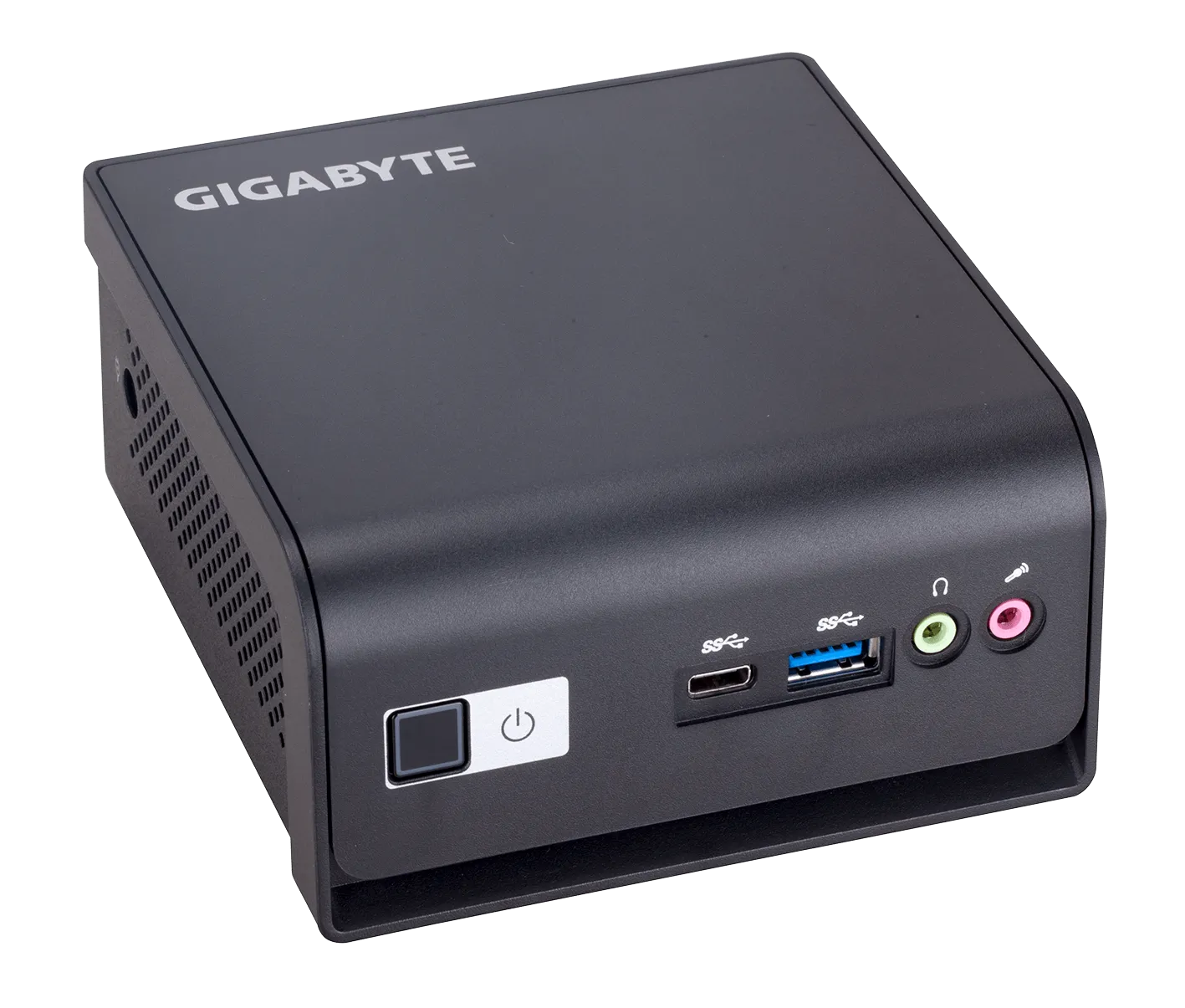

Gigabyte Brix BMPD-6005 Pentium System GB-BMPD-6005 GB-XJPD

Manufacturer: Gigabyte

Intel N6005 CPU 2.0G~3.3G Turbo, 4C/4T Core, 4MB L3 Cache, 10W Ultra compact PC design at only 0.67L (56.22x103x116.52mm) 1st 10 nm small core CPU Support M.2 2280 slot for SSD (support PCI-e x2+SATA) Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3) 1 x SO-DIMM DDR4 slots support 2933MHz, Max 16GB 802.11ac, Dual Band Wi-Fi & Bluetooth 4.2 Realtek 8111HS Gigabit LAN HDMI 2.0b support 4K@60P HDR10 MiniDP 1.4 support 4K@60P HBR2 Realtek ALC255 Codec 4 x USB 3.1 (1 x USB Type-C) Headphone Jack Mic-phone Jack VESA Mounting Bracket (75 x 75mm + 100 x 100mm) AC-DC adapter : 100-240V input, 19V 65W OS Support : Microsoft Windows 10 64Bit 1x Kensington Lock slot System Environment Operating Temperature: 0°C to +35°C System Storage Temperature: -20°C to +60°C

SKU: SOC0017

Manufacturer part number: GB-BMPD-6005 GB-XJPD

Availability: 5 in stock

€196.50 incl VAT

Qty:

i h

Dimension
56.22 mm x 103 mm x 116.52 mm (2.21" x 4.06" x 4.59")
Motherboard Size
105 x 110 mm
CPU
Intel^® Pentium^® Processor N6005
2.8GHz, 4 core (TDP 10W)
Memory
1 x SO-DIMM DDR4 slots
2933MHz
Max. 16GB
LAN
Gigabit LAN (Realtek 8111HS)
Wifi Card
Dual Band Wireless-802.11 AC
Graphics
Intel^® UHD Graphics 605
Audio
Realtek ALC255
HDMI Resolution (Max.)
HDMI2.0b
Support 4K@60P HDR10
Mini DP Resolution (Max.)
DP1.4
support 4K@60P HBR2
Storage
Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
Expansion Slots
1 x M.2 slot (2280_storage) PCIe X2/SATA
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
Front I/O
1 x USB3.0
1 x USB3.0 type C
1 x Headphone jack
1 x Microphone jack
Rear I/O
1 x HDMI(2.0a)
1 x mini DisplayPort (1.2a)
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot
Power Supply
Input: AC 100-240V
Output: DC 19V/3.42A, 65W
VESA
Bracket included
Supports 75 x 75 and 100 x 100 mm
Support OS
Win10 64bit
Environment
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
