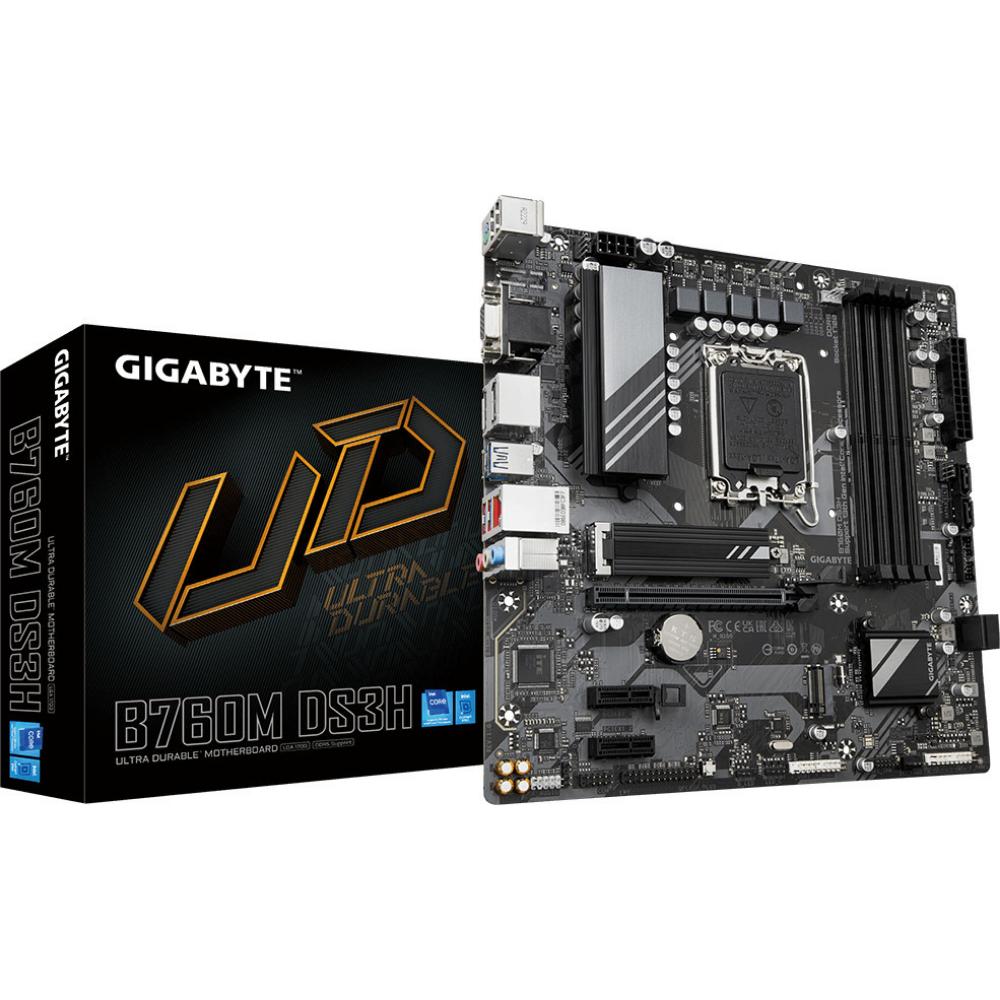

Gigabyte B760M DS3H DDR4 1.0 Motherboard

Full Description

• Micro-ATX motherboard based on the Intel B760 chipset and designed for compatible Intel LGA1700 desktop processors.
• Supports Intel 14th, 13th, and 12th Gen Core processors, providing a flexible platform for modern desktop systems.
• Supports DDR4 memory for a cost-effective system build or upgrade using existing compatible RAM.
• PCIe 4.0 connectivity provides high-speed support for modern graphics cards and other compatible expansion devices.
• Multiple M.2 slots allow the installation of fast NVMe SSDs for operating systems, applications, and games.
• Integrated 2.5GbE LAN provides high-speed wired networking for gaming, file transfers, and everyday connectivity.
• Includes multiple USB ports and display outputs for connecting a wide range of peripherals and compatible displays.
• Micro-ATX form factor makes it suitable for compact gaming PCs, office systems, and general-purpose desktop builds.

Key Features

• Brand: Gigabyte
• Model: B760M DS3H DDR4
• Revision: 1.0
• Chipset: Intel B760
• CPU Socket: LGA1700
• Processor Support: Intel 14th, 13th and 12th Gen Core processors
• Form Factor: Micro-ATX
• Memory Type: DDR4
• Memory Slots: 4 x DIMM
• Maximum Memory: Up to 128GB
• Memory Support: Dual-channel DDR4
• Graphics Interface: PCIe 4.0 x16
• Storage: Multiple M.2 NVMe slots and SATA 6Gb/s connectors
• Networking: Realtek 2.5GbE LAN
• USB Connectivity: USB 3.2 Gen 1 and USB 2.0 connectivity
• Display Outputs: HDMI and DisplayPort
• Audio: High-definition onboard audio
• Expansion: PCI Express expansion slots
• Application: Gaming, office, productivity, and general desktop systems
