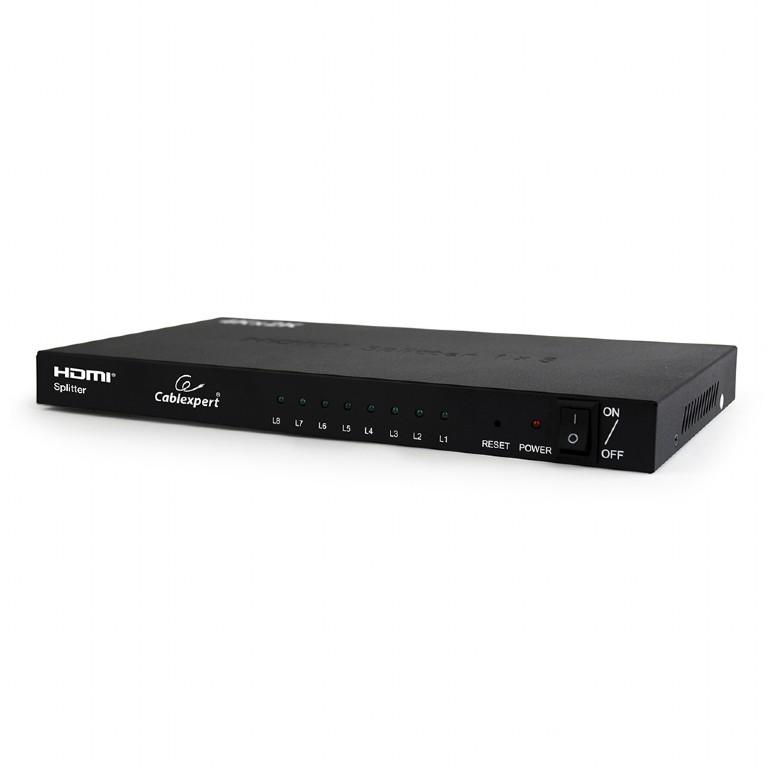

Picture of Gembird HDMI Splitter 8 ports DSP-8PH4-03 Picture of Gembird HDMI Splitter 8 ports DSP-8PH4-03 Picture of Gembird HDMI Splitter 8 ports DSP-8PH4-03 Picture of Gembird HDMI Splitter 8 ports DSP-8PH4-03 Picture of Gembird HDMI Splitter 8 ports DSP-8PH4-03 Picture of Gembird HDMI Splitter 8 ports DSP-8PH4-03

Gembird HDMI Splitter 8 ports DSP-8PH4-03

Manufacturer: Gembird
An 8‑port HDMI splitter that duplicates a single HDMI source to eight displays. Features a high-bandwidth amplifier for clear signal transmission, supports 4K video and 3D content, ideal for classrooms, conference rooms, and multi-screen setups.
SKU: AHU0011
Manufacturer part number: DSP-8PH4-03
GTIN: 8716309092494
Availability: 12 in stock
€44.50 incl VAT
i h
  • Model: DSP‑8PH4‑03
  • Input / Outputs: 1 × HDMI input, 8 × HDMI outputs (Type-A)
  • Supported Resolutions: Up to 4K (3840×2160 @ 30 Hz)
  • Color Depth: 8/10/12‑bit
  • Audio Formats Supported: DTS-HD, Dolby TrueHD, DTS, Dolby AC-3, DSD
  • Video Amplifier Bandwidth: 340 MHz, up to 3.2 Gbps
  • Max Transmission Distance:
  • Input cable: ~15 m for 1080p, ~12 m for 4K
  • Output cable: ~25 m for 1080p, ~15 m for 4K
  • Video Support: 3D compatible
  • Housing Material: Steel
  • Power Adapter: 5 V DC, 3 A
  • Power Consumption: ~1.6 A at 5 V DC
  • Dimensions: 276 × 136 × 24 mm
  • Weight: ~0.66 kg
