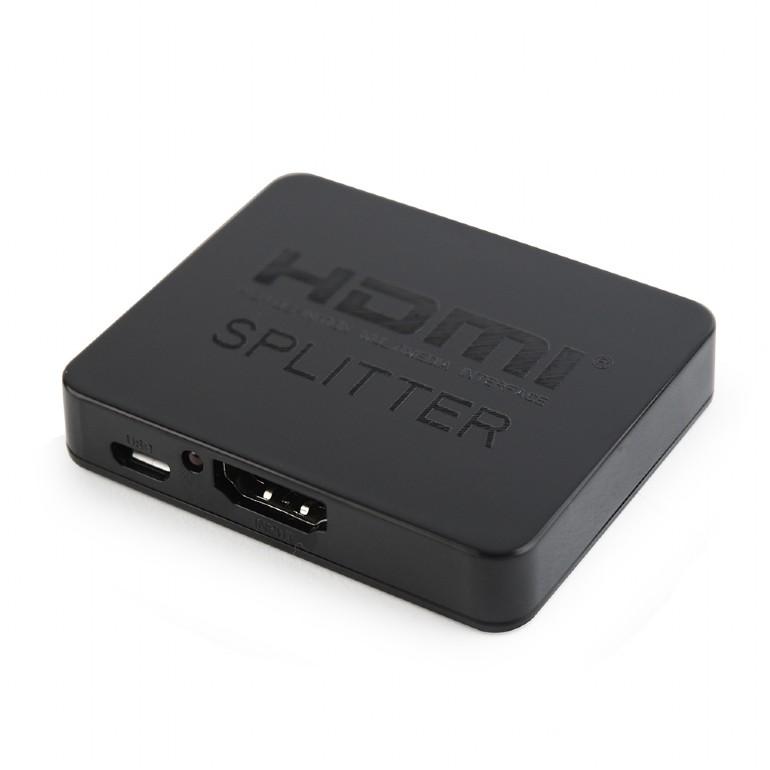

Gembird HDMI Splitter 1>2 DSP-2PH4-03

Manufacturer: Gembird

Sends a single HDMI signal to 2 separate monitors, projectors or TV’s The digital amplifier increases the transmission distance and also improves signal quality Supports 3D video

SKU: AHU0014

Availability: 23 in stock

€10.70 incl VAT

Qty:

i h

Overview
Specifications
Contact Us
Terms & Conditions

Specifications
Ports: one input receptacle, 2 output HDMI output receptacles, 19 pin (A)
Interface standard: HDMI + HDCP v.1.4 (compatible with all HDMI versions)
Video formats: HDMI (480p/576i/576p/720p/1080i/1080P)
Maximal single-link range: 1920x1080 pixels, 1080p
Dual-link range: up to 3840x2160 at 30 Hz; color 30bit, 36bit
Supports Blue-Ray: 24/50/60fs/HD-DVD/xvYCC, audio DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD/HD(HBR)
Signal retiming support
Working distance: up to 20 m at AWG26 HDMI cable (at 4K resolution - 8 m input max, up to 12 m output)
Video amplifier: 0.5...1.0 Vp-p, up to 225 MHz bandwidth, DDC signal 5 Vp-p
Power adapter specs: 5 V DC, 1 A
Dimensions: 70 x 60 x 20 mm
Net weight: 0.12 kg
