Delock 89004 PCI 2x serial 1x Parallel

Manufacturer: Delock

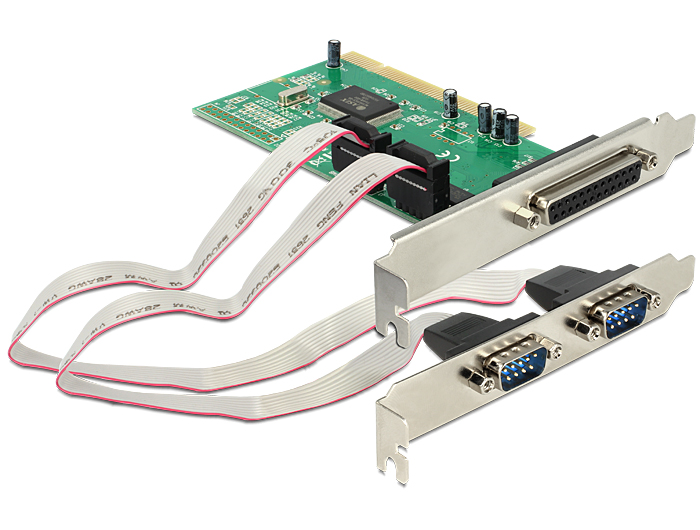

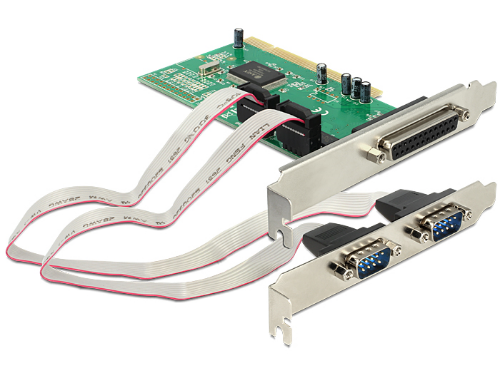

The PCI card by Delock expands a PC by two external serial ports as well as one external parallel port. Different devices such as scanner, printer, mouse etc. can be connected to this card.

SKU: AMS0013

Manufacturer part number: 89004

Availability: 4 in stock

€29.00 incl VAT

Qty:

i h

• Connectors:
external:
2 x serial RS-232 DB9 male (separate rear bracket)
1 x Parallel DB25 female
internal:
2 x 9 pin COM port pin header male
1 x 32-Bit PCI standard 2.1
• Chipset: ASIX MCS9835
• Data transfer rate:
serial up to 115.2 Kbps
parallel up to 1.5 Mbps
• FIFO: 16 byte
• Automatically selects IRQ and I/O
• SPP, PS2, EPP, ECP compatible to IEEE 1284
• Compatible with 16C550 UART
• Supports PCI IQR sharing
• Operating temperature: 0 °C ~ 70 °C
• Dimensions (LxW): ca. 119.9 x 63.5 mm

System requirements
• Linux Kernel 2.6
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI slot and one rear slot

Package content
• PCI card
• Slot bracket
• Driver CD
• User manual

Package
• Retail Box

Accessory
