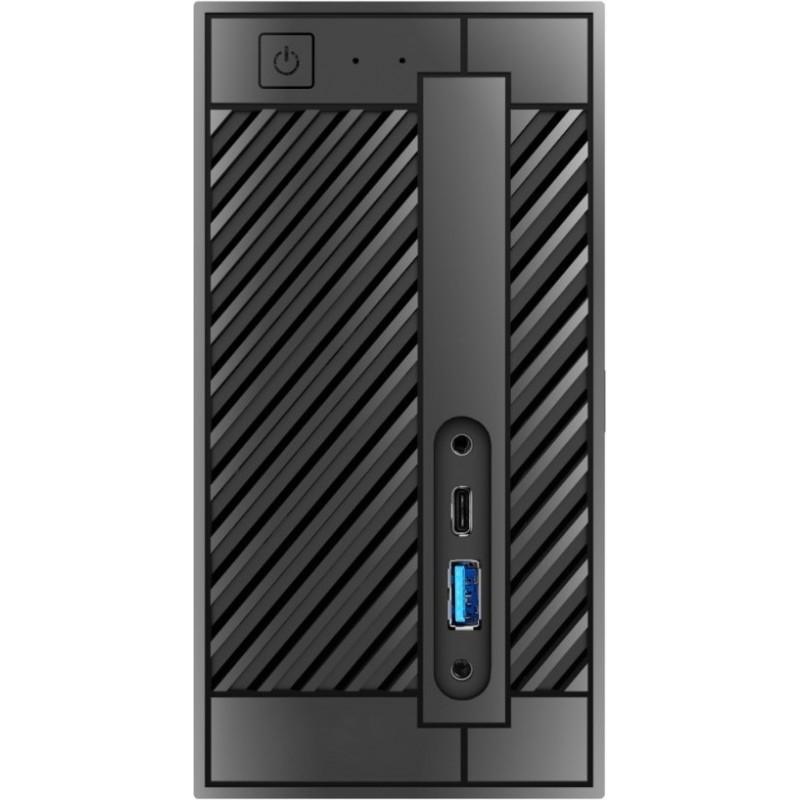

ASRock Deskmini H310/B/BB Mini STX Barebone W/O CPU/Ram/HDD

Manufacturer: Asrock

Supports Intel® 9th/8th Core™ / Pentium® / Celeron® LGA1151 processors Dual DDR4 SO-DIMMs, up to 64GB Triple Video outputs: DisplayPort, HDMI & D-Sub 1 x Ultra M.2 PCIe Gen3 x4 Slot 2 x 2.5" HDD/SSD Tray 1 x M.2 (2230) Wi-Fi Slot USB 3.1 Gen1 Type-C port Micro SD Card Reader

SKU: SOC0011

Availability: 2 in stock

€171.50 incl VAT

Qty:

i h

CPU
- Supports Intel^® 9th/8th Gen LGA1151 Processors (Max. TDP 65W)
Cooler
- Supports Intel^® LGA115x CPU Cooler (Max. Height ≦ 46mm)
Memory
- Supports 2 x SO-DIMM DDR4-2666MHz, Max. 64GB (non-ECC)
Chipset
- Intel^® H310
Graphics
- Integrated Intel^® UHD Graphics
Graphics Output
- 1 x HDMI (4K@30Hz)
- 1 x DisplayPort (4K@60Hz)
- 1 x D-Sub

*Supports up to 2 displays simultaneously.
Audio
- 1 x Head Phone with Mic Jack
- 1 x Mic-In
- Realtek ALC233
Front USB
- 1 x USB 3.1 Gen1 Type-C
- 1 x USB 3.1 Gen1 Type-A
Rear USB
- 1 x USB 3.1 Gen1 Type-A
- 1 x USB 2.0 Type-A
Storage
- M.2_1: Type 2280 PCIe Gen3 x4 & SATA 6Gb
- 2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive
- 1 x Micro SD Card Reader
LAN
- 1 x RJ45 Gigabit LAN
- Intel^® Gigabit I219V
WLAN
- 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
- Support Intel^® CNVi module, PCIe
Front I/O
- 2 x USB 2.0 Headers, 1 x Front Panel Header
- 2 x 4-Pin fan connectors (CPU, SYS)
- 1 x DC-In Jack (Supports 19V Power Adapters)
- 1 x Internal Speaker Header (4-Pin)
- 1 x Chassis Intrusion Header (2-Pin)
Rear I/O
- 1 x HDMI*
- 1 x DP*
- 1 x VGA*
- 1 x USB 2.0 Type-A
- 1 x USB 3.1 Gen1 Type-A

*Three graphics output options : HDMI, DP, VGA and supports up to 2 displays simultaneously.
Connectors
- 1 x USB 2.0 Header
- 1 x Front Panel Header
- 2 x 4-Pin Fan Connectors
- 1 x DC-In Jack (Supports 19V Power Adapters)
- 1 x 4-Pin Audio Header
- 1 x Internal Speaker Header
- 1 x 2-Pin Chassis Intrusion Header
Power Unit
- 120W/19V Adapter
Operation Temperature
- 0-35°C
Accessory
- 2 x SATA Data with Power Cable
- 1 x Screws Pack
Dimension
- Motherboard: 5.8" x 5.4" (Mini-STX)
- Barebones: 155 x 155 x 80 mm (1.92L)
Security
- Kensington Lock
- Key Lock
OS
- Microsoft^® Windows^® 10 64-bit / 11 64-bit
Certification
- CE, FCC
Remark
- TPM Software
